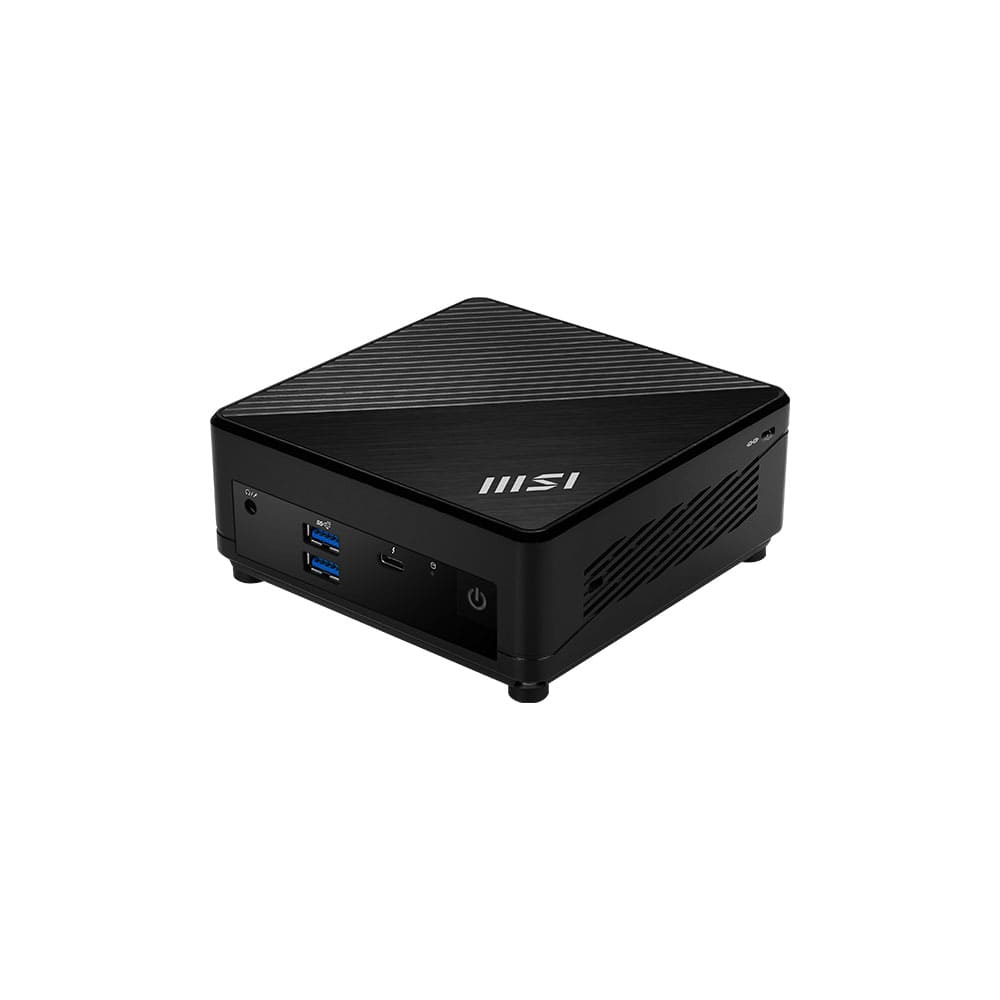

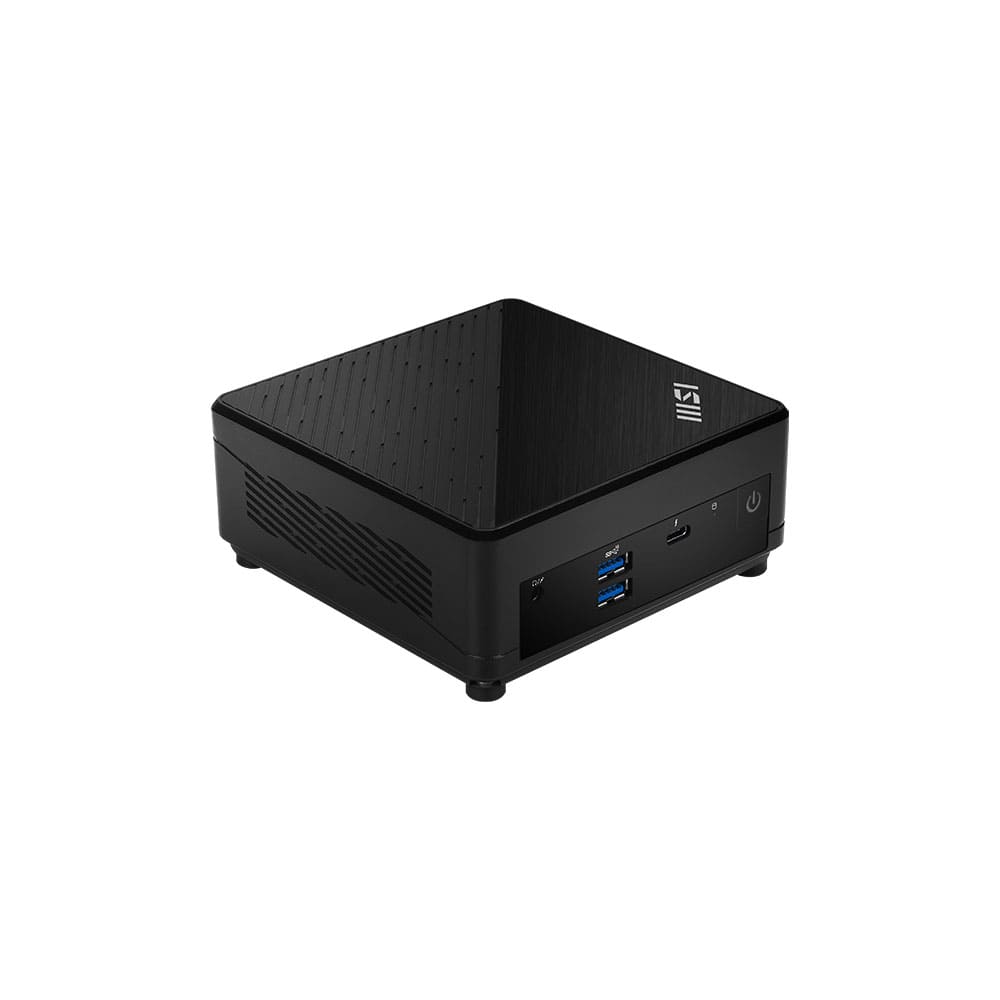

MSI CUBI 5 12M-003BEU I3-1215U FDOS MINI DT BAREBONE PC

Alışveriş Listeme Ekle

Fiyat Alarmı

MSI

11.758 TL

Adet:

Sepete Ekle

Hemen Al

Taksit Seçenekleri

Ürün Özellikleri
Banka Hesap Bilgileri
Teslimat ve İade Koşulları

CUBI 5 12M-003BEU
Part No	936-B0A811-080
Brand	MSI
Website Name	Cubi 5 12M
Color	ID1/Black-Black-Black
Processor
CPU Core Name	ALDER LAKE
CPU Socket	FCBGA-1744pin
CPU Number	Intel Core i3-1215U
CPU Clock	1.2GHz
CPU Cores	6
TDP	15W
CPU Cooler	Air cooling
Platform TOPS
NPU TOPS
Max Turbo Frequency	up to 4.40 GHz
Cache	10 MB Intel® Smart Cache
Threads	8
Chipset
Chipsets	Soc
MB Ori. MKT Name	Cubi 5 12M
Graphics
GPU1 Vendor	N/A
GPU1 MKT Name	N/A
GPU1 Number	N/A
GPU1 VRAM Size	N/A
VGA I/O Port	N/A
VGA MKT Name	N/A
Memory
Memory Size	N/A
Memory Type	N/A
Memory Speed	N/A
Module Type	SO-DIMM
Memory Slot	N/A
Memory Slot(Total)	2
Memory Slot(Free)	2
Max Capacity	Max 64GB
Storage
SSD Interface	N/A
SSD Form Factor	N/A
SSD Config	N/A
SSD Size	N/A
HDD1 Interface	N/A
HDD1 Form Factor	N/A
HDD1 Size	N/A
HDD1 RPM	N/A
ODD(Type)	N/A
ODD Height	N/A
ODD Type	N/A
mSATA slots	N/A
mSATA slots(Total)	NA
mSATA slots(Free)	0
M.2 slots	N/A
M.2 slots(Total)	1
M.2 slots(Free)	1
2.5" Drive Bays	N/A
2.5" Drive Bays(Total)	1
2.5" Drive Bays (Free)	1
3.5" Drive Bays	N/A
3.5" Drive Bays(Total)	NA
3.5" Drive Bays(Free)	0
Communications
LAN	1x Realtek RTL8111H+1x Realtek RTL8125BG-CG
WLAN	INTEL/AX211.NGWG.NV
WLAN Version	Wi-Fi 6E+BT
BT Version	5.3
VESA
VESA size	100 x 100 mm
Audio
Audio Chipset	Realtek ALC256
Audio Type	2.1 Channel HD Audio
Speaker	NA
D-MIC

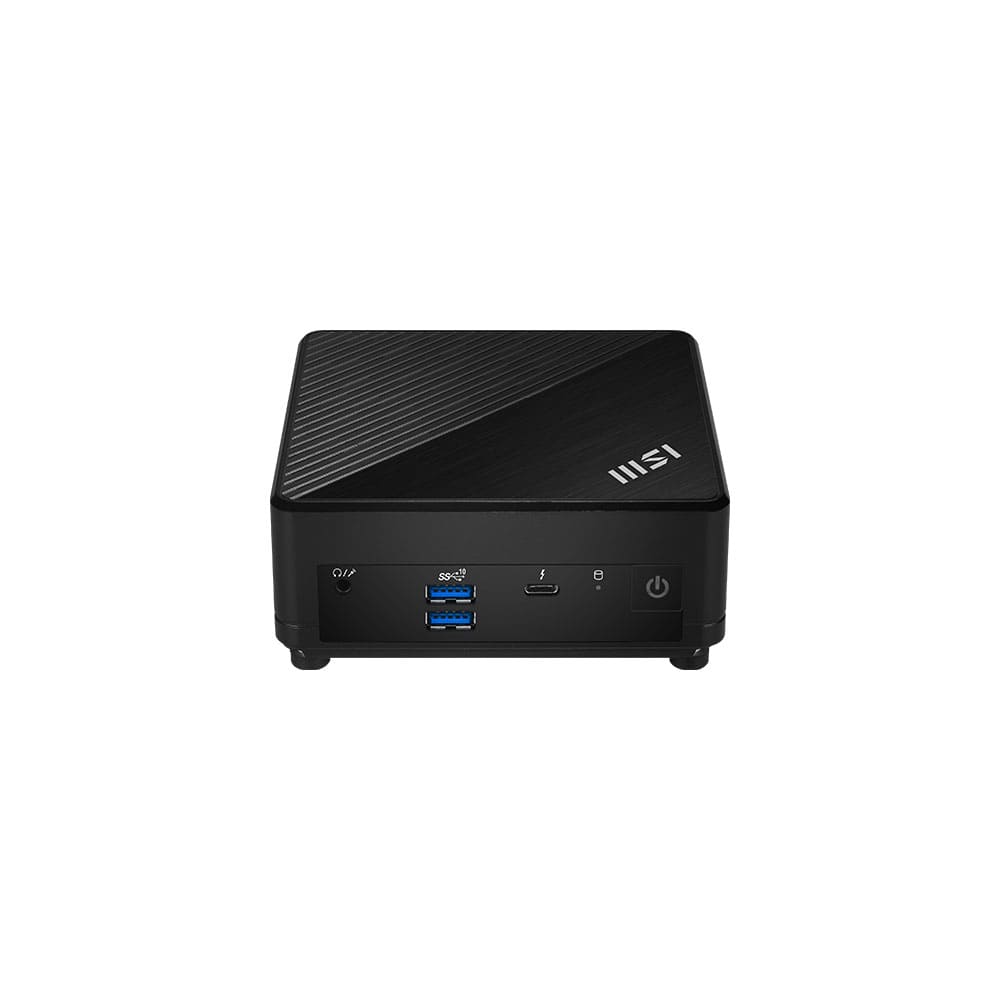

I/O Ports (Front)
USB 4 (80G) Type C
USB 4 (40G) Type C
USB 4 (20G) Type C
USB 3.2 Gen 2x2 (20G) Type C	NA
USB 3.2 Gen 2 (10G) Type C	NA
USB 3.2 Gen 2 (10G) Type A	2
USB 3.2 Gen 1 (5G) Type C	NA
USB 3.2 Gen 1 (5G) Type A	NA
USB 2.0 Type A	NA
Thunderbolt	1x (ThunderBolt 4)
Audio Mic-in	NA
Audio Headphone-out	NA
Audio Headphone-out (HiFi/SPDIF)	NA
Mic-in/Headphone-out combo	1
Card Reader	NA
Copilot Button

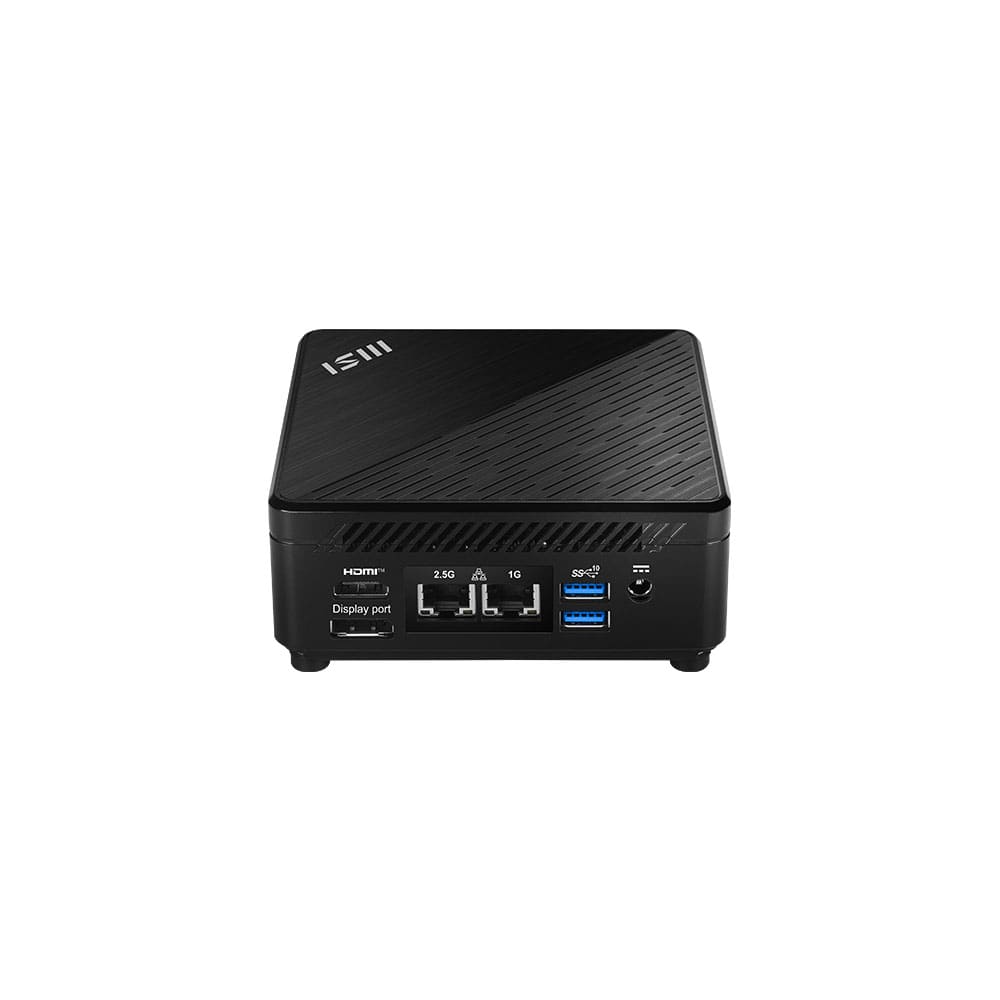

I/O Ports (Rear)
USB 4 (80G) Type C (R)
USB 4 (40G) Type C (R)
USB 4 (20G) Type C (R)
USB 3.2 Gen 2x2 (20G) Type C (R)	NA
USB 3.2 Gen 2 (10G) Type C (R)	NA
USB 3.2 Gen 2 (10G) Type A (R)	2
USB 3.2 Gen 1 (5G) Type C (R)	NA
USB 3.2 Gen 1 (5G) Type A (R)	NA
USB 2.0 Type A (R)	NA
Thunderbolt (R)	NA
RJ45	2
WiFi Antenna	NA
Card Reader (R)	NA
VGA out	NA
HDMI out	1x (v2.0b)
DP out	1x (v1.4)
mini DP in	NA
mini DP out	NA
PS/2	NA
COM Port	NA
DVI-D out	NA
Audio jack	NA
S/PDIF	NA
Configurable port
Lock type
Flash BIOS Button	NA
Clear BIOS Button
Power
Power	65W
Power Certification	N/A
Formfactor	N/A
Type	ADAPTOR
Operating Systems
OS Type	Freedos
Dimension&Weight
Product Dimension (WxDxH) (mm)	124 x 124 x 53.7
Product Dimension (WxDxH) (inch)	4.88 x 4.88 x 2.11
Inside Carton Dimension (WxDxH) (mm)	205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch)	8.07 x 8.66 x 3.7
Outer Carton Dimension Standard (WxDxH) (mm)	221 x 506 x 469
Outer Carton Dimension Standard (WxDxH) (inch)	8.7 x 19.92 x 18.46
Outer Carton Dimension with bundle item (WxDxH) (mm)	N/A
Outer Carton Dimension with bundle item (WxDxH) (inch)	N/A
Weight (Net kg)	0.59
Net Weight (lbs)	1.3
Weight (Gross kg)	1.33
Gross Weight (lbs)	2.93
Liter	0.66L
Pint	0.66L
Noise Level
Idle mode	28 db
Full loading mode	38 db
Warranty
Warranty	24months
SW Feature - 3rd Party Royalty
Nahimic Sound effect	N/A
HDMI Royalty	Y
Mechanical and Environmental
Operating, Storage Temperature	0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity	0% ~ 85%;0% ~ 90%
Regulatory Compliance	FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Accessories
AC Adaptor	1
Power Cord	1
Warranty Card	N/A
Quick Guide	2
User Manual	N/A
VESA Mount kit	1
Power Switch	1
Keyboard	N/A
Keyboard Interface	N/A
Mouse	N/A
Mouse Interface	N/A
Model Info
Series Name	Pro
Segment Name	Cubi
Segment Name2	Cubi 5
Segment Name3	Cubi 5 12M
